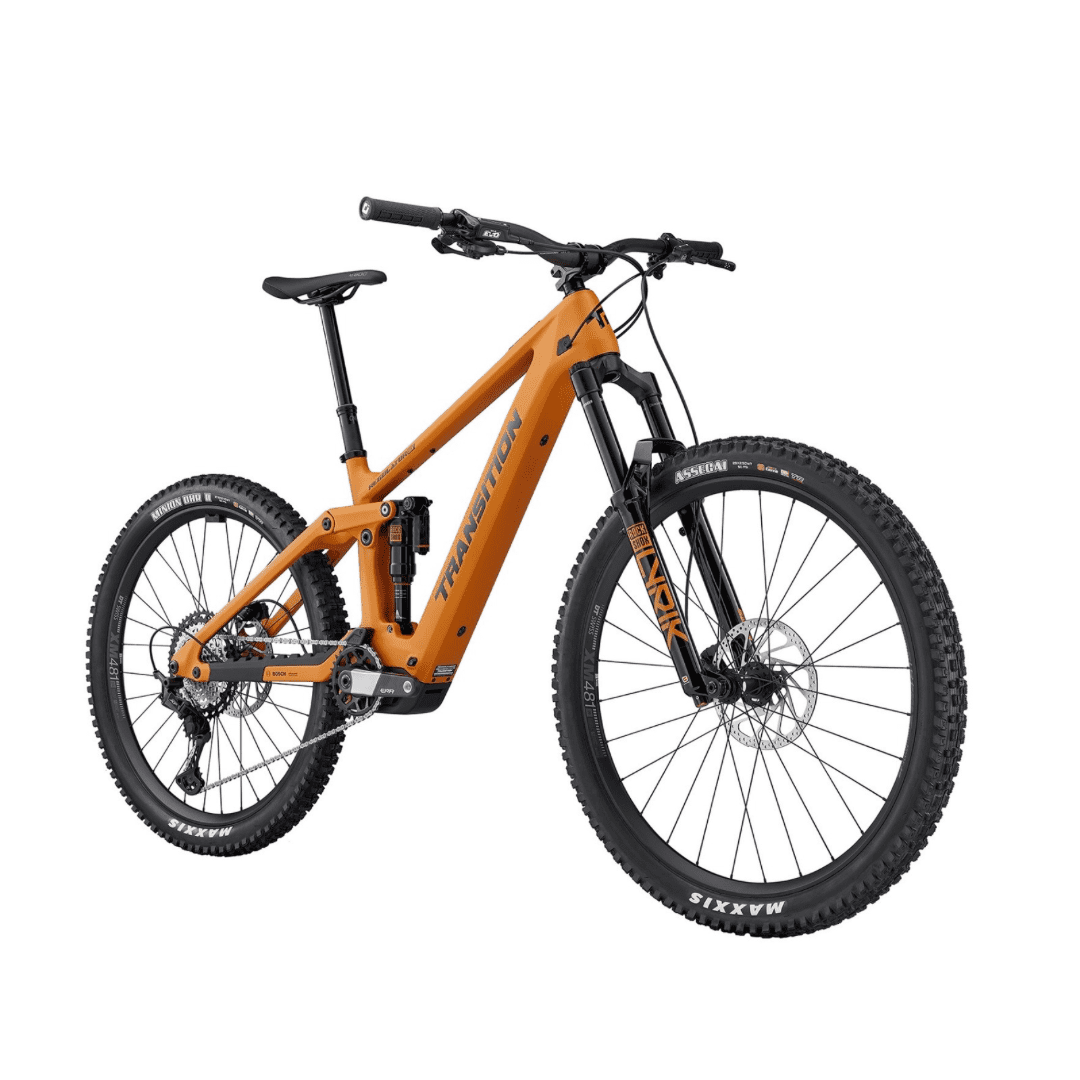

2025 Transition Regulator SX Deore - Madrone Gold - Large
2025 Transition Regulator SX Deore - Madrone Gold - Large - Image 2

2025 Transition Regulator SX Deore – Madrone Gold – Large

Original price was: $6,999.99.Current price is: $6,200.00.

-

The Transition Regulator SX Carbon Deore redefines the lightweight e-MTB experience. Blending a full carbon frame with the nimble handling of a mixed wheel setup and Transition’s legendary Speed Balance Geometry, this bike delivers the natural, agile feel of a traditional trail bike with a stealthy boost.

– Please call or text us if you would like additional photos of the bike –

In stock

SKU: 01.25.11.5210 Categories: , , , , , , , , Tags: , , , , ,

Description

2025 Transition Regulator SX Deore E-Bike
Size – Large w/ Mixed Wheel Size
E-Bike Class – Class 1: Pedal Assist (Pedelecs)
Motor – Bosch Performance Line SX, 55 Nm max torque, 600 W peak power
Battery – Bosch CompactTube, integrated
Option: Bosch Range Extender, 250 Wh (sizes MD-XL only)
Battery Capacity – 400 Wh
Display/Remote:
Bosch System Controller top tube integrated LED display, Bosch Wireless Mini Remote
Modes – Turbo, eMTB, Tour+, Eco, Walk Assist
Max Speed with Assist – USA/Canada/New Zealand: 20 mph (32.2 km/h)
Other: 15.5 mph (25 km/h)
Frame Material – Carbon Fiber
Frame Material – Carbon front and rear triangles, molded chainstay protection
Rear Travel – 150mm
Rear Shock – RockShox Super Deluxe Select, trunnion mount, 205mm length x 60mm stroke
Fork – RockShox Lyrik Base, 35mm stanchions
Fork Travel – 160mm
Head Tube Diameter – Tapered, 1.125″ top, 1.5″ bottom
Headset – FSA No.57E, ZS44 upper, ZS56 lower
Handlebar – Race Face Chester, 780mm width, 35mm clamp diameter
Rise: 20mm (SM), 35mm (MD-XL)
Stem – Race Face Aeffect R, 40mm length, 35mm bar clamp
Grips – ODI Elite Flow, lock-on
Brakes – Shimano Deore M6120, 4-piston, Shimano Rt66 203mm rotors
Brake Levers – Shimano Deore M6100
Drivetrain – 1x
Shifters – Shimano Deore M6100, 12-speed, I-SPEC EV mounting bracket
Front Derailleur – None
Rear Derailleur – Shimano Deore M6100, 12-speed, SGS cage
Chainguide – Transition integrated upper slider
Cranks – Race Face Aeffect R E-MTB, 160mm length
Chainrings – e*thirteen Helix Race, direct mount, 32 tooth
Chain – Shimano Deore M6100, 12-speed
Cassette – Shimano Deore M6100, 12-speed, 10-51 tooth
Rims – WTB ST i30 Alloy, 30mm inner width
Hubs –  D791SB 15mm x 110mm (Boost) front, D902SB 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Spokes – DT Swiss Competition
Tires:
Front: Maxxis Assegai, 3C compound, EXO casing, 29″ x 2.5″
Rear: Maxxis Minion DHR II, 3C compound, EXO casing, 27.5″ x 2.4″
Saddle – SDG Bel-Air V3
Seatpost – SDG Tellis dropper
Drop: 150mm (SM), 170mm (MD), 200mm (LG), 230mm (XL)
Seatpost Diameter – 31.6mm
Seatpost Clamp – Single bolt, 37.0mm
Rear Dropout / Hub Dimensions:
12mm x 148mm (Boost)
Warranty – Lifetime frame, 2 years motor and battery
